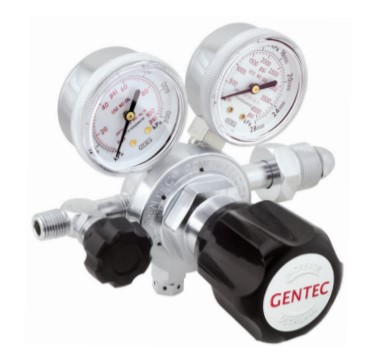

High Purity Medium Flow Regulator
GENTEC HP152 Series is a Single-Stage High Purity Gas Brass Regulatordesigned for high purity applications where occasional readjustments of
the working pressure is acceptable.
Not recommend for corrosive gases.
Product Features
- 2'' 316L Stainless Steel Diaphragm
- 2'' Dual-Scale Pressure Gauges
- Optional outlet : Needle Valve or Diaphragm Valve
- Conforms to CGA E-4 standard for Gas Pressure Regulators
Specifications
- Maximum inlet pressure : 3000psi (206 bar)
- Maximum outlet pressure : 250psi (17 bar)
- Operating temperature range : 0 to 140 F (-17 to 60 C)
- Weight : 1.2kg
